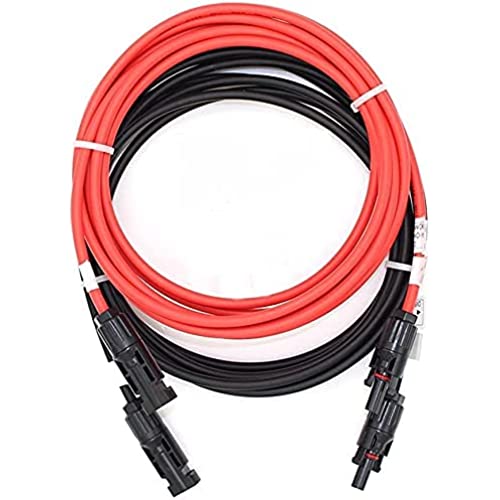

ANFIL 4mm² / 12AWG Solar Panel Extension Cable with Female and Male Connectors

Features:
- Solar panel cable is typically sold in 14, 12 and 10 AWG sizes. This solar panel cable is 12 AWG and has diameter of conductor 4mm2. The product is a set of two wires

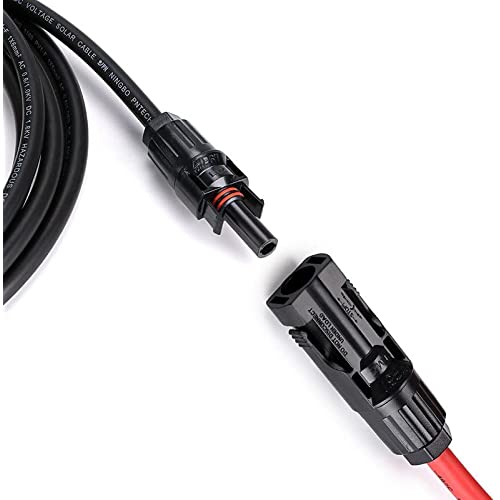

- The adapter cable includes male and female connectors on both cable ends
- This wiring kit is essential for off-grid solar installations, roof or ground level
- The cable is weatherproof and designed to withstand extreme heat and cold

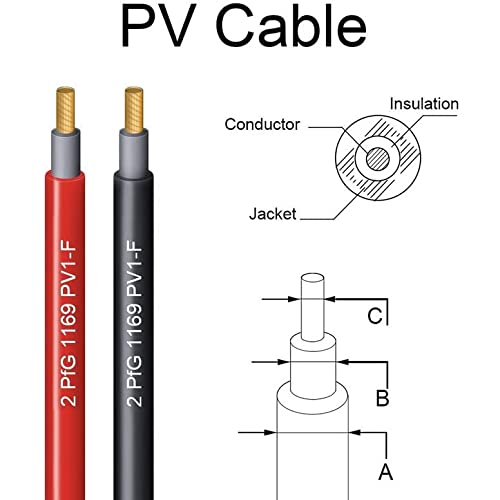

Specification:
Product Name: Extension Cable for Solar Panel
Cable Cross Section: 4mm² (12 AWG)
Conductor of Cable: Tinned copper
Insulation of Cable: Double XLPE
Housing Material of connectors: PPO/PC
Contact Material: Copper, silver plated
Pin Dimension: 4.0 mm
Contact Resistance: ≤ 0.5 mΩ
Rated Voltage: DC 1.5 kV; AC 0.6-1 kV
Rated Current: 10 ~ 50 A
Test Voltage: 6 KV (50 Hz, 1 Min)
Flame Class: UL94-V0
Plug Force: ≤50N
Withdrawal Force: ≥50N
Rated Temperature: -40°C~+90 °C
Upper Temperature Limit: 100 °C
Waterproof: IP67/IP68
Pollution Degree: 2
Protection Degree: Class II
Standard: TUV, CE
Service Life: 25 years

Package include:
- 1 black solar cable with female and male connectors
- 1 red solar cable with female and male connectors
