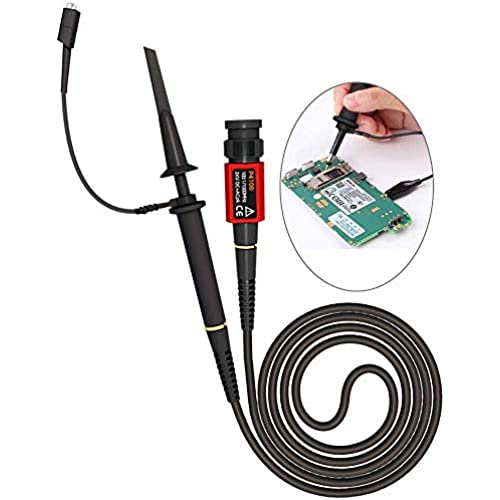

Goupchn High Voltage Oscilloscope Probe P4100 with Accessory Kit 100MHz 2000V 100:1
-
KC
> 3 dayNice quality at a fantastic price. Works well and as expected. Great value!
-
EdM
> 3 dayI do some work on old vacuum tube ham radios. It is fairly common that the final amplifier tubes have 600-800 volts DC on them. Then the signal of 100+ volts AC is applied on top of that. Most 10x probes that come with an oscilloscope are good for 400-600 volts before you destroy them. So, these 100X probes that are good to 2KV are an important tool. I have used this one I purchased only once. But, it works as intended and meets my needs. The probe appears to be well built, reliable and safe to use
-
Karl Lindheimer
> 3 dayThis 100:1 scope probe is well made, and worked perfectly allowing me to scope signals that would damage the inputs on my scope. For instance, I wanted to visualize the 60 Hz AC sine wave that was present on a standard 120 VAC line. Because of RMS voltage, the actual line voltage would have been much higher than the input rating on my scope, thus being dangerous and damaging it. By using this 100:1 attenuation probe it was now possible to safely view the waveform. If you set your scope on 100X setting then even the scales read properly on the display.
-
Robert Simms
> 3 dayI was not using this for the spaceship I am building in my kitchen, but instead for looking at alternating current waveforms from backup power devices to see if they are cool for my electronics. The spaceship will wait.
-
Frank Gibson
> 3 dayfried on first use. total junk
-
Jill whiter
Greater than one weekLike I said, after a month, so for so good.
Goupchn - Make something different. At Goupchn, we strive to provide high quality tools and accessories that inspire our consumers to live a more convenient and enriched lifestyle. Our unlimited passion for innovation and solutions drives us to move forward. We have strong belief that only if we have a deep understanding of people’s needs and desires, we can make our products become different, which may make your life different.
Oscilloscope Probes are electrical component which connect the circuit under test and oscilloscope input. Superior materials and advanced technology enhance the feeling and the structure. The smooth surface is easy to use.
About us.
Goupchn has passed the ISO9001:2015 international quality management system certification based on the business philosophy of "Quality is the pursuit, quality wins the trust". Our products have passed the inspection of the National Instrument Testing Center and have successively obtained UL, CE, and RoHS certifications, and have won praises from users at home and abroad.
Goupchn High Voltage Oscilloscope Probe P4100 with Accessory Kit 100MHz 2000V 100:1
Specification:
- 100:1 attenuation
- Input resistance of 100 megohms
- Input capacitance of 6 pF
- Compensation range: 10 - 35 pF
- Bandwidth: 100 MHz
- Rise time: 3.5 ns
- Maximum operating voltage: 2 KV (Vp-p)
- Length: 1.2 meters
|
|
|
|
|---|---|---|

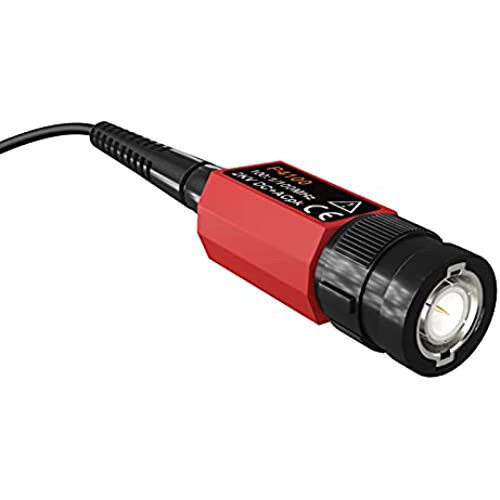

BNC Male Connector
|
Colorful Rings
|
Capacitance Compensation
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| P4100 Oscilloscope Probe | P2200 Oscilloscope Probes | P2100+P1007B Oscilloscope Probes Kit | P2200-D Oscilloscope Probes Kit | P6100 Oscilloscope Probes | P4250 Oscilloscope Probe | |
| Bandwidth | 100Mhz | 200Mhz | 100Mhz | 200Mhz | 100Mhz | 250Mhz |
| Rise time | 3.5ns | 1.75ns | 3.5ns | 1.75ns | 3.5 ns | 1.4ns |
| Attenuation ratio | 100：1 | 1X / 10X | 1X / 10X | 1X / 10X | 1x / 10x | 100：1 |
| Maximum measured voltage | 1000V | 600V | 600V | 600V | 600V | 1000V |
