MeLE Quieter3Q Fanless Mini PC Windows 11 pro Celeron N5105 16GB 512GB, Portable Desktop HDMI Wifi6 Gigabit Ethernet, Micro PC Unlock Bios Auto Power on, SSD PXE on Astrophotography Telephotography
MeLE Quieter3Q N5105 16GB 512GB Newly Released Wifi6 Fanless Mini PC--Your Second Small Form Factor
MeLE Quieter3Q Fanless Micro PC with Wifi6 4K HDR
We are living a internet wed connected world,home and office, business and service is gonna to Connected by IoT. In the past year,a computer desktop is bulky and heavy. Now MeLE Quieter3Q, a Tiny PC of 0.44lbs/230 grams, 18.5mm*81mm*131mm/0.71”3.2”5.2” will be an ideal choice as a portable affordable pc for IoT goal.
MeLE Quieter3 mini computer series contains two models,Quieter3Q is equiped with celeron N5105 Quad core processor,Quieter3D equiped with celeron N4500 dual core prossessor.
Seven Reasons for Gaining a MeLE Quieter3Q mini computer:
A small form factor Preinstalled and licensed with window 11 pro,Support Dual OS operation,Windows and Linux,Ubuntu,Debian...
Higher performance with Intel celeron Jaskperlake N5105,7*24 hours stable performance and connection with wifi 6,2.4Ghz/5.0Ghz,5.2 Bluetooth
5TB Expandable storage via M.2 ssd slot,usb,micro sd slot.,Multi I/O ports for computer peripheral devices,4*usb 3.0+2 HDMI ports.
A quiet PC of Fanless Design , 0 bd noise during working.
|
|
|
|
|---|---|---|
Fanless Design ,0db NoiseUnique waved sink, doubled the heat dissipation surface for cooling, totally 0dB silent,never feel disturbed during working. High thermal conductive engineering plastic housing case, the coefficient of thermal conductivity of 5.0W/mK, is 20 times the ordinary ABS or PC plastic |
A palm sized Pocket PCUltra Thin and Portable mini computer,Convenient to carry for business trip 13.1*8.1*1.83cm/5.15*3.18*0.72inch, Product net weight:203g/0.44lb small in size,light in weight,it won"t be a burnden wherever you are. |
Rich Interfaces for PC Perpheral Devices4*USB and 2*HDMI Ports: 2*USB3.2 Gen 1(Theoretical data speed USB3.2 Gen 1=5Gbps)， 2*USB3.2 Gen 2 (Theoretical data speed USB3.2 Gen 2=10Gbps) Support external HDD and SSD up to 5TB 2* HDMI 2.0 (female) |
|
|
|
|
|---|---|---|
Wi-Fi 6 and Bluetooth 5.2Built in Intel Wi-Fi 6 AX201 Adapter Support WiFi 6 (802.11ax), MU-MIMO,Support 2.4Ghz, 5Ghz,Built in Bluetooth 5.2, Support Enhanced Attribute Protocol (EATT),LE Power Control Feature (LEPC),Isochronous Channels (ISOC)., More stable connection,stronger signal transmission,less influence from interference. |
Dual Screen 4K HDR HDMI Displayadopts celeron jasperlake N5105 4-core processor,support Dual Screen 4k performance in HD HDR on TV and Monitor. ideal for video output on youtube,Netflix,and work as server for HTPC Plex.The HDR output,stands for High Dynamic Range and more photo details, ideal for photographer and astrophotographer to view photo details on monitors. |
Unlock BIOS for CustomizationSupport auto power on, boot from Network (support PXE Boot, not iPXE Boot),boot from USB (Support UEFI boot,not Legacy boot ), S5 RTC Wake,Wake On LAN/WOL,setting Boot order,Support UEFI Shell,Support BIOS Reset/CMOS Reset,Support disable Quiet Boot |
12V 2A Power adapter With Type C Port
Parcel List
1x Quieter3 Mini PC,1x DC 12V 2A power adapter
1x US Plug, 1x GS plug
1x Silicone heat dissipation pad
1x User Manual, 1x VESA mount
Note : SSD HDD not included,does not support USB PD 3.0 Protocol.

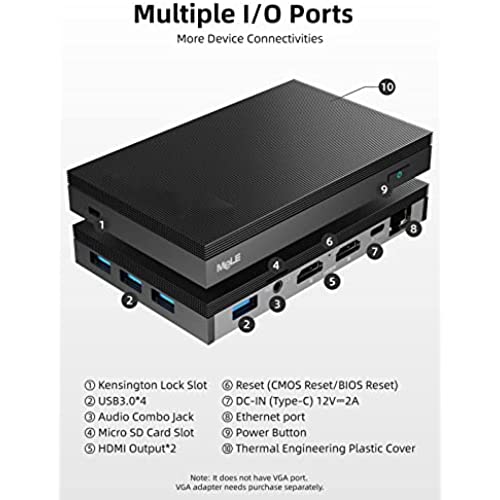

- 1/O Ports List for Quieter3
- 1*DC IN 12V/2A port,1*RJ-45 Jack Ethernet port
- 2*USB 3.2 Gen 1, 2*USB 3.2 Gen 2，,1*3.5mm audio jack
- 1*Micro SD slot,1*M.2 2280 Slot inside
Specification for MeLE Quieter3Q N5105 16GB 512GB Micro PC
Product Name:MeLE Quieter3Q Fanless Mini PC
Model No:Quieter 3Q
CPU:Celeron Processor N Series Jasper Lake N5105
Processor Base Frequency:2.0GHz,Burst Frequency:2.9GHz
Operating System: Pre-install with Win11pro
GPU Processor Graphics:Intel UHD Graphics,TDP:10W
WiFi: Wifi6 AX201,Wifi:10/100/1000Mbps
Bluetooth: BT5.2
DC Power Adapter: 12V/2A
- Ram and Rom for Quieter3Q
- RAM Memory : Single Channel 16GB LPDDR4x,
- ROM:256GB eMMC +256GB SSD
- Support 1*M.2 2280 NVMe SSD Slot, M.2 22x80 Key M Slot for PCIe3.0 x2 （Theoretical data speed 1970MB/s=985MB/s x2）
- NOTE: The bios does not Support M.2 SATA ssd
Frequently Asked Questions On MeLE Quieter3 Portable mini PC
Why the 256GB eMMC Storage only displays 228GB storage on computer?
It is because the different matrixing method between PC and HDD/SSD/eMMC.Computer matrixing:1KB=1024Byte，1MB=1024KB，1GB=1024MB.
HDD/SSD/eMMC supplier"s matrixing:1KB=1000Byte，1MB=1000KB，1GB=1000MB
How to enter the BIOS settings?
Press the power button, and press F7 or Delete to enter the boot device selection menu-> select Start Setup and press Enter.
Instructions to install Ubuntu 20.04
Press the power button and press F7 or Delete continuously to enter select boot device menu --> select Enter Setup and press Enter to enter into BIOS Setting menu. Select Advanced --> CSM Configuration --> Enter to. Select CMS Support --> Change disabled to enabled. F4 Save & Exit
Why the 4K performance is lagging?
4k displays is affected by many factors, such as net speed, HDMI cable, monitor setting, graphic card, video decoding method, video format and video resolution.Our mini pc adopts integrated graphic, if the 4K video still lags when hardware decoding, your video might need higher processor and delicate graphic card.And we suggest you to lower the resolution to 1080p for video fluency.
Who are MeLE Fanless Mini PC users？
MeLE Fanless Mini PC are widely applied for Industrials,Business ,Products Services, Automotive, Information Technology ,Retail, Distribution ,Consumer, Real Estate, Materials, Transportation ,Logistics, Food Service, Hospitality, Telecom, Media, Financial Services ,Agribusiness, Energy, Utilitie,s Higher Education, K-12 ,Early Childhood, Lifelong Learning, HC Services, Acute, Non-acute, Doctors, HC Manufacturing, Dentists, Local Government Service,Healthcare ,Federal ,Nonprofit organization.
Why the mini pc fails to boot PXE?
If the processor is N5105,it needs to upgrade to server to the newest version.
