PoE Texas 12 Volt PoE+ - IEEE 802.3at - Splitter Splits Power Over Ethernet to 12v DC & Gigabit Data with Opto-Isolation Protection for 12v 25w Devices, Tablets, Single Board Computers, PTZ Cameras
-
Flower Lover
> 24 hourI used this to power some foscam outdoor pan-tilt cameras. I was using a Network switch POE supply and mounted the cameras to the fascia of my home. I used another brand POE splitter and on bench test all cameras worked perfect. Once all them were mounted to locations on fascia I could only get the first camera working that was connected, Any others would not power up! I finally figured if I removed camera from fascia with out changing anything, camera came back online! It seems metal fascia was some how creating a ground loop feedback and changing power requirements. I could have made a cutout around camera mount I guess so no electrical ties with other cameras but these splitters are truly isolated without sharing anything with grounds input to output. I tried numerous splitters and had same issue with many I tried and returned (thanks Amazon!) I saw some mentions about using other splitters to power cable modems and modems frying due to grounding issues but these work perfectly I am told so reason I tried them. Lost many sleepless nights trying to figure out what went wrong with my setup and tried cable replacement and more before accidentally figuring out about power supply with splitters. I wish I purchased these in first place and recommend this brand to correct odd issues as these just work and are very durable, if they fail at some point I will post back with update but do not expect them to fail as they seem built like a tank!
-
Michael Petrov
> 24 hourI tried multiple POE splitters, and thats of the few that work as advertised, producing the stated Watts, in a smaller package than Phihongs.
-
Jason Gabler
> 24 hourIm able to power my Arlo hub which requires 12V/1.5A, no problem. Ive been through a number of other popular brands on Amazon that all claimed to be able handle 12V and 18W, but theyd whine and get warm if they even worked at all. The PoE Texas unit is working solidly. So happy I dont have to run power.
-
Susan Piper
> 24 hourI havent deployed this unit yet, but am confident that once I build the correct DC- DC barrel coaxial connector adapter cable, this PoE splitter will do exactly what it was designed for. That is, power my new ROKU ULTRA 4800R from a PoE switch while connecting same said device to a wired ethernet connection (preferred over Wi-Fi for reliability / stability), thus eliminating the need to be close to an AC power source. I will provide a follow up review once connected. More to come....
-
DAVID D
> 24 hourA+
-
Michael Hagenes
> 24 hourPRODUCTS ARE GREAT AND SHIP IN QUICK

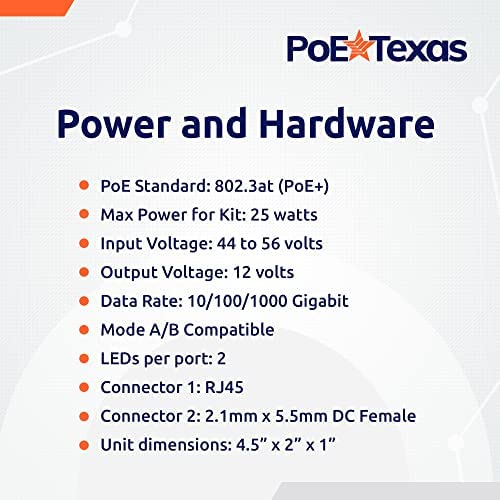

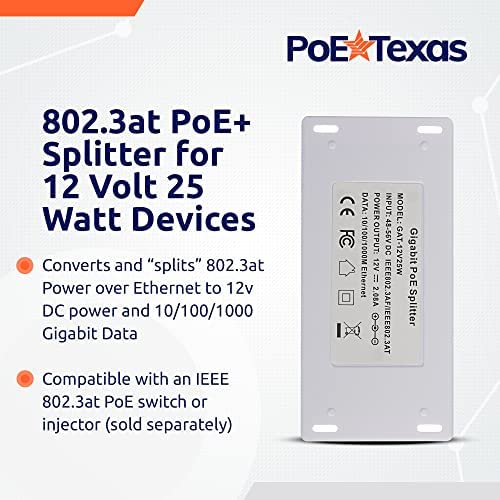

The most efficient solution for PoE+ networks. Leverage the full power of your 802.3at (PoE+) Power over Ethernet network to run non-PoE hardware and/or provide lightning-fast wired internet speeds. Designed for mid-tier device power requirements, this splitter provides a continuous 12 volts, 25 watts of power to 12v devices. Built specifically to meet the power demands of 12v non-PoE devices on a network running PoE+. The unit converts and “splits” Power over Ethernet to 12v DC Power along with Gigabit Data on the Ethernet output.
Use it with your existing 802.3at PoE+ switch or 48v PoE Injector (sold separately) to power 12-volt non-PoE devices up to 328 feet away from the power source. Eliminate the need for a power supply or nearby electrical outlet to run devices and camera systems. Benefit from a more secure network via direct Ethernet rather than WiFi for computers and tablets sharing sensitive data or files.
- Perfect for mounted powering of non-PoE devices up to 328 feet away
- Provides continuous 12 volts / 25 watts of power
- Eliminate the need for nearby power supply or electrical outlet
- Offers a more secure network via direct Ethernet
- “Splits” PoE power and Gigabit data onto corresponding output ports
- Mode A/B compatible

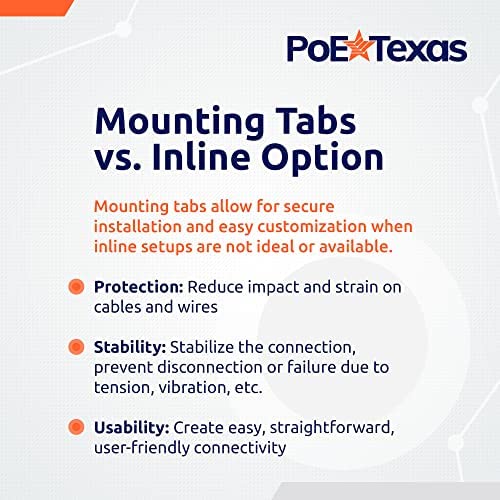

Mounting Tabs vs. Inline
Specially designed with built-in mounting tabs for enhanced security of the installation and greater customizability of network setups when an inline setup is not ideal or available. Mount directly to a wall, rack, cabinet, desk, kiosk, or shelving unit.
Protection: Reduce the impact of strain that could damage wires, cables, and connectors
Stability: Stabilize the connection to prevent disconnection or failure due to tension, vibration, movement, etc.
Usability: Create easy, straightforward “plug-and-play” connectivity to make devices safer and more user-friendly for end users

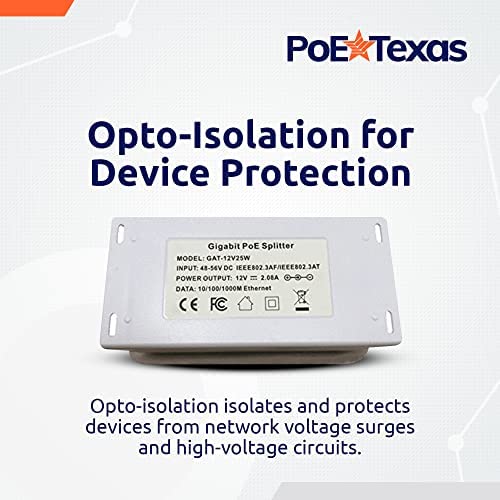

Built-in opto-isolation technology isolates and protects lower voltage devices and electrical equipment from high-voltage circuits and power surges.
Compatible with:
- 12v Single Board Computers
- IEEE 802.3at PTZ Cameras
- Arduino
- Echo Dot
- Arlo Pro Base Station
- Foscam
- WiFI Access Points
- Raspberry Pi
- More
|
|
|
|
|---|---|---|
|
Mounting tabs provide even more options for secure installation when an inline setup is not optimal, designed to enhance:
Personalize and streamline your setup with the ability to screw the splitter directly into walls in network closets, near necessary outlets, into racks, or into the underside of desks and shelving units. |
|
|
