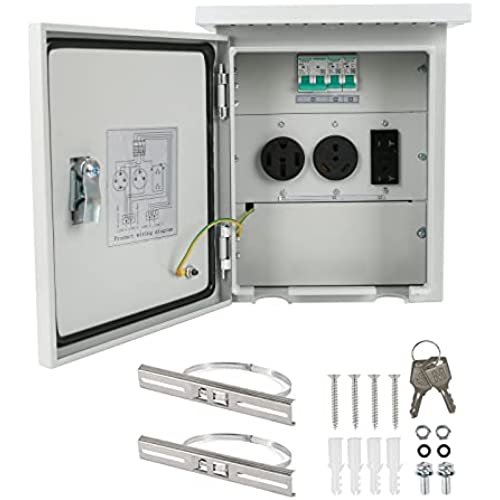

Prewired Temporary Power Outlet Panel Box RV Pedestal Electrical Box with 20, 30, 50 Amp Receptacle Installed Lockable Weatherproof Circuit Breaker Box for Temporary Hookups Camper RV Park
RV temporary power outlet panel is designed for outdoor service, it can meet the construction site, RV parks, new energy vehicles, motorhome, parking lot and other temporary charging needs, so that users get power more convenient and safe.
RV pedeatal breaker box featured with a 50 amp, 30 amp and 20 amp outlets. Every outlet is protected by a circuit breaker and outdoor enclosure. It provides a safe and reliable way for users to obtain power in these places.
Temporary power box for RV is ideal for construction job-site and campground power supply, great for home hookups RV park camper travel trailer motorhome and more.
Specifications:
Size: 13.7" high x 10.2" wide x 5.9" thick.
Material: Made of heavy-duty cold-rolled steel
Current Rating: 50 amp, 30 amp and a 20 amp receptacle.
Voltage Rating: 125V/250V
Certification: UL listed.
Weatherproof and Prewired.

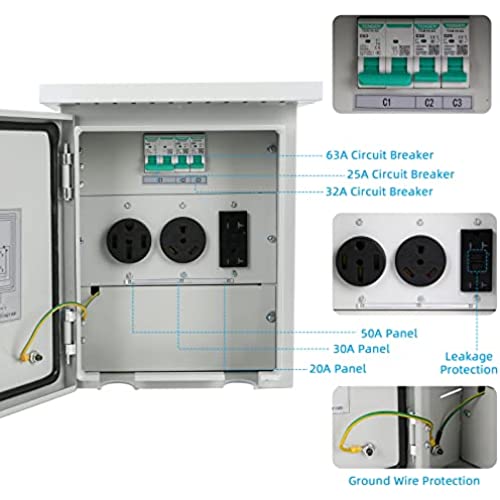

CIRCUIT BREAKER
[C1]-63A: Rated voltage 400V Rated current 63A Breaking capacity 6KA
[C2]-25A: Rated voltage 400V Rated current 25A Breaking capacity 6KA
[C3]-32A: Rated voltage 400V Rated current 32A Breaking capacity 6KA
RECEPTACLES
[c1]-50A: Rated voltage 250V Rated current 50A
[c2]-30A: Rated voltage 125V Rated current 30A
[c3]-20A: Rated voltage 125V Rated current 20A
|
|
|
|
|---|---|---|
UL ListedUL Listed and Outdoor Rated. Each receptacle is protected by a circuit breaker. |

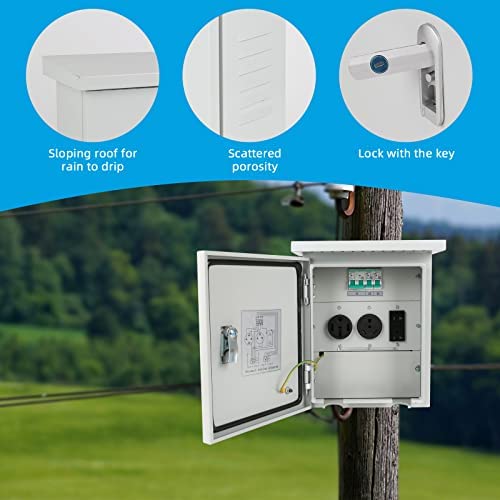

WeatherproofThe shell of the RV electric box adopts the whole body spraying process, with strong corrosion resistance and waterproof. |
Side Open DoorRV outlet receptacle door is side open design, so you do not need to hold the door when wiring. |
|
|
|
|
|---|---|---|

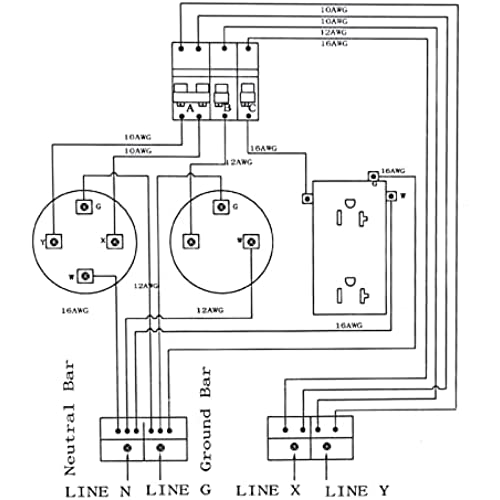

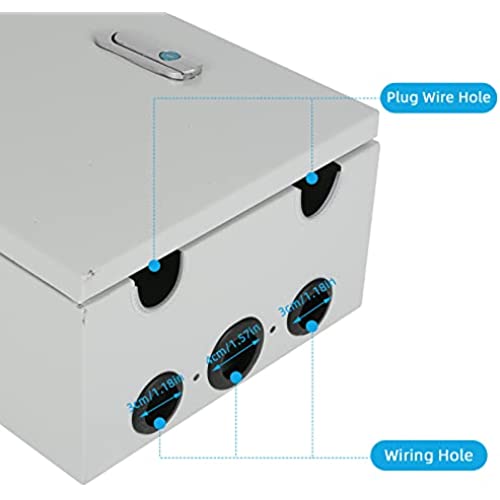

Reserved Wiring HoleThe five pre-wired holes are distributed in different directions. You only need to connect the corresponding earth, neutral, live wires on the terminal block. |
LockableAnti-theft locking part prevents unauthorized use, also avoid electric shock to keep safety. |
Easy to installRV/EV power outlet box components come prewired and assembled, reducing installation time, faster and safer. |
