Screen Replacement for iPad 7 7th Gen 2019 A2197 A2198 A2200, for iPad 8 8th Gen 2020 10.2 A2428 A2429 A2430 Digitizer Replacement Without Home Button+ Pre-Installed Adhesive + Tools(Black)
Product package content description
|
|
|
|
|---|---|---|
Touch screen with home button（Black or White）All products have undergone strict quality inspection before shipment, 100% guaranteed to be in perfect condition. Please choose the color corresponding to your ipad: black or white |

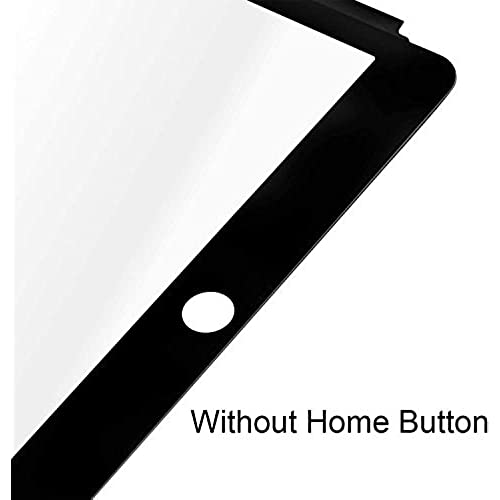

Key tips about Home buttonThe kit does not have a home button. If it is in good condition, please use the original button to retain the Touch ID function. |

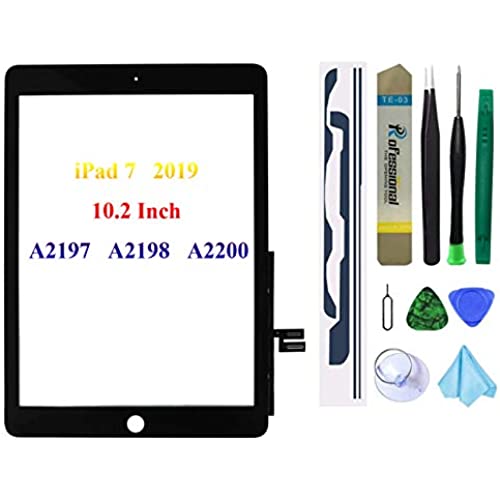

High-quality toolkitOur tools are durable and will not break like plastic tools, making your replacement and installation easier |
Compatible models：

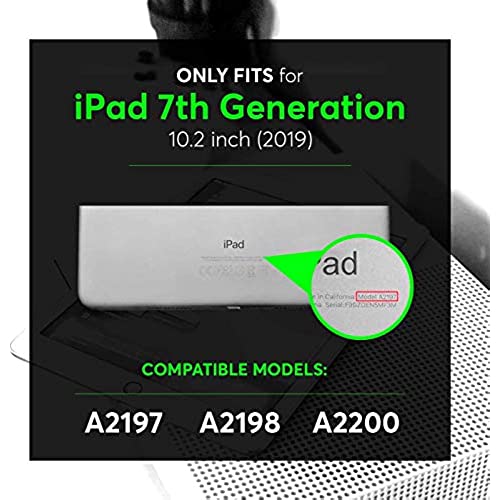

Only compatible with iPad 7th Gen 2019 / iPad 8th Gen 2020 10.2 inches, model A2197 | A2198 | A2200 | A2270 | A2428 | A2429 | A2430.
Check your device model carefully, you will find it on the back of the device.
Tips

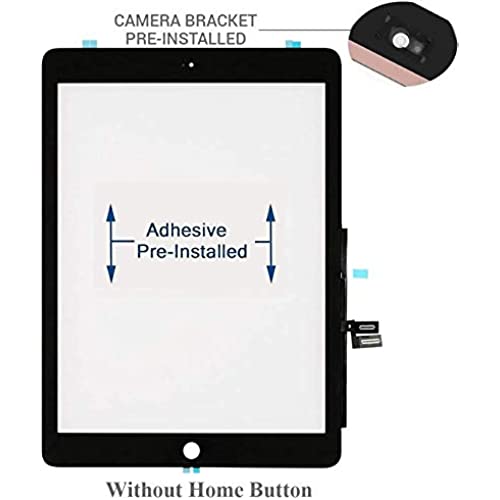

The screen is pre-installed with adhesive, and there are protective films on both sides.
Please make sure that the screen is working properly before tearing off the adhesive and protective film.
In addition, there may be scratches on the protective film, but it will not affect the screen. Please remove the film and check the screen.
Screen replacement graphic tutorial
|
|
|
|
|
|---|---|---|---|
|

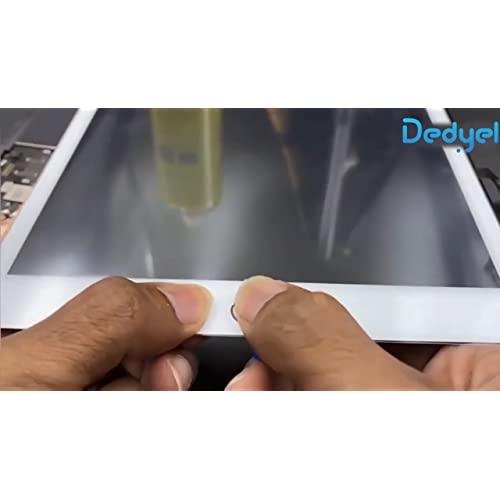

Turn off the power and use a hair dryer to heat the edge of the tablet. |
With the aid of the suction cup, use a metal spudger to pry up one side, and insert the triangular warp in parallel to the prying place to avoid re-bonding. When inserting, it must be inserted in parallel to avoid damage to the inner screen |
After prying it open, you can pick up the external screen, please be careful not to break the button cable. |
The buttons and cables are pasted on the external screen and need to be peeled off carefully. There are two fixed blocks on the left and right sides of the button. You need to pry open the two ends with a knife, and then carefully pick up the button and the cable. |
Screen replacement graphic tutorial
|
|
|
|
|
|---|---|---|---|
|
After the outer screen is disassembled, the inner screen needs to be disassembled. Use a screwdriver to unscrew the four-corner screws. Two of the screws are covered by plastic paper and need to be removed with tweezers. |
After opening the inner screen, use a screwdriver to unscrew the three screws of the cable cover |
After opening the cover, use a spudger to pry open the cable of the external screen. Since the external screen has been completely damaged, the cable was previously cut with scissors |
Then use a crowbar to uncover the cable of the inner screen, and then further clean up the remaining glue. |
