Vermont Gage - 111125300 Steel Go Plug Gage, Tolerance Class ZZ, 0.253 Gage Diameter

(1332 Reviews)
Price
$2.09
Quantity
(10000 available )
Total Price
Share
36 Ratings
35
0
0
0
1
Reviews

  • Snowmanmo

    > 24 hour

    A must have for machining

  • HarleyChr15

    > 24 hour

    Bought this to replace an extracting pin in my firearm. Pin worked great and I was able to cut it down for 3 more spares.

  • Jesse Mc

    > 24 hour

    Its a gauge pin. Micd right on. All good.

  • John p.

    > 24 hour

    fantastic plug gauges for what ever project you need them for

  • E.D.

    > 24 hour

    All good

  • PFB

    > 24 hour

    well satisfied with product& service

  • G. Taylor

    > 24 hour

    I have several of these, in different sizes, that I use to check gas ports in rifle barrels. Ive checked the pins for size and each one is as advertised.

  • Jamin Koehn

    > 24 hour

    I bought 6 of these gages individually to determine the size of locking shoulder I need for an FAL rifle. I bought a Vulcan Arms Locking Shoulder Sizing Rod, but it only goes down to .255. FALs built with DS Arms receivers seem to be notorious for requiring much smaller locking shoulders, and my FAL is one of them.

  • Robert Matlaga

    > 24 hour

    Perfect. Great price also.

  • MEF

    > 24 hour

    Great quality hardened and ground gage pin. Fast shipping, good value, fitted my needs perfectly. Would buy again.

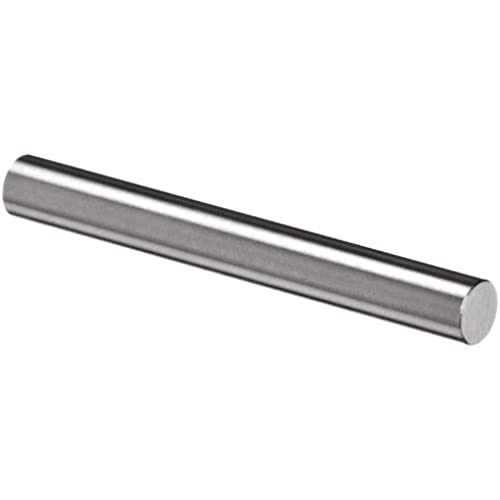

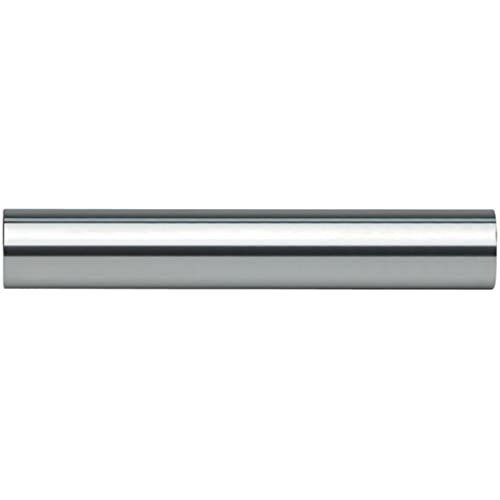

The Vermont Gage steel go (+) plug gage is a class ZZ inch gage for calibrating measuring equipment and gage parts. A certificate of accuracy traceable to NIST is available for each gage, and each pin is marked with its size and direction of tolerance in sizes over .060”. Each gage is sealed in a volatile corrosion inhibitor (VCI) bag and packaged with a rust preventative.

All gages measure 2” long, are within .00001” round (per ASME B89.1.5), and have at least a 10-microinch finish for a smooth finish. This gage is made of tool steel 60/62 Rc (cold stabilized) for durability and is available with either a steel or black guard finish (to inhibit corrosion and for indicating wear). Sizes are available from .0040” to 1.0005” (increments of .001”), with a tolerance of +.0002” for longer wear.

Plug gages are precision ground cylindrical steel plugs used to measure the diameter and depth of drilled or machined holes. They are available in different classes, based on acceptable tolerance (allowed deviation from the stated size). Standard tolerances and classes for cylindrical gages up to .825” are as follows: Class XX (.00002" or .0005 mm), Class X (.00004" or .0010 mm), Class Y (.00007" or .0018 mm), Class Z (.0001" or .0025mm), and Class ZZ (.0002" or .0050 mm). For gages with a wider diameter, tolerance gradually increases for each class.

Since 1968, Vermont Precision Tools, Inc. (VPT) has been manufacturing a variety of precision round and ground pins, perforators, and special punches. Vermont Gage was formed in 1980, and manufactures a wide range of fixed limit gages. Located in Swanton, Vermont and Franklin, Kentucky, Vermont Gage manufactures 98% of the products they sell and is ISO 9001:2000 and ISO 17025 quality certified.
