Cable Matters OFNP Plenum Multimode Duplex OM3 Fiber Cable 3.3 Feet / 1m (40Gb 10Gb, LC to LC, 50/125 Fiber Optic Cable, Fiber Patch Cable)
-
Larry Moody
> 24 hourProduct was good, but delivery was delayed and I wasnt notified until it was too late to reorder form another supplier, this caused me to have to purchase product locally for 3 times the cost to avoid delay of project.
-
The PI man
> 24 hourAs expected
-
Joseph Klima
> 24 hourQuality great!
-
Cameron Motes
> 24 hourI’ve installed thousands of these and never had an issue
-
Randy Beasley
> 24 hourWorks fine
-
Ms. Vergie Ankunding DVM
> 24 hourWorked as expected, cable quality seems good.
-
Chuck Hernandez
> 24 hourTotal satisfied, good value, on time delivery.
-
Michael Kilroy
> 24 hourWorked exactly as described. Good quality fiber and priced very well. Will buy again for my additional fiber cable needs.
-
Jon
> 24 hourThese work very nicely. They fit well, and the specs on the test sheet enclosed with each were indeed accurate. As a matter of course I run these through my test light meter to ensure they are up-to-par before deployment. Not to say Ive ever had a bad cable, but when youre working at a remote data center and you cable everything up and then drive back home quite a distance away, you want confidence.
-
ryan
> 24 hourBest fiber for the price. Super flexible with good LC connections. I have yet to get line speed out of them but I doubt that has anything to do with these cables.
10 Gigabit Performance for Critical Connections
The Cable Matters LC to LC Multimode 50/125 fiber cords are OM3 rated for the extreme demands of SAN networks. They are precision factory tested for insertion and return loss to ensure transmission performance according to TIA-568-C.3 specifications. The combination of LC connectors in a protective yoke, strain relief boots and zirconia ceramic ferrules provides a dependable, low-loss performance.
Plenum Safety Rated
The OFNP (plenum) rating conforms to strict NEC building safety codes but is compatible with unrated or OFNR (riser) rated applications.
100% Factory Tested with Small Form Factor LC Connectors
Each cable is tested in the factory to meet quality control and insertion loss requirements. Save labor cost and troubleshooting time with these fiber cords that are ready to use.

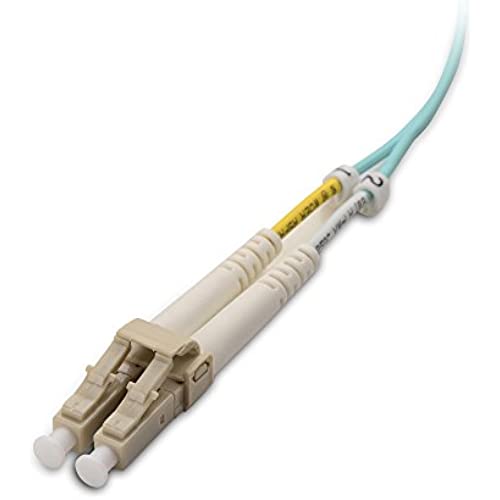

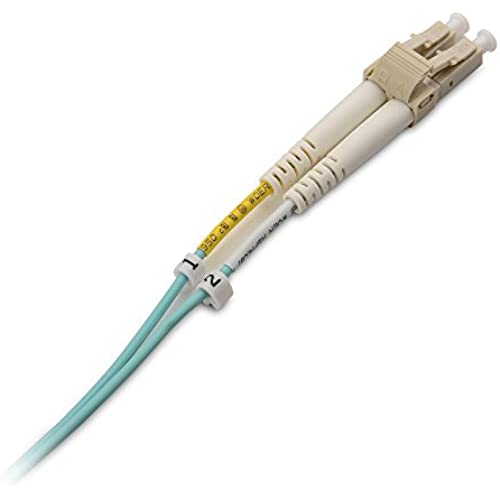

Full-Featured OM3 LC to LC Multi-Mode Fiber Cord
- Easy to identify yellow and white boots with 1 & 2 ring makers
- Slim-profile strain relief boots provide durability and flexibility
- Adjustable yoke un-snaps to reverse polarity
- Removable dust caps prevent dirt from reaching the fiber
Bend Insensitive Engineering
- Bend insensitive multimode fiber (BIMMF) provides greater flexibility in tight spaces or long cable runs with multiple bends.
- BIMMF fiber cable is engineered with an extra layer of glass around the core to ensure optical performance and provide durability for the extreme requirements of SAN network or high-density patch panel installations.
- Protect your network against macro-bend losses that are difficult to isolate, troubleshoot, and repair.
Adjustable Yoke with A & B Labels
- Classification: OM3 LOMMF
- Core/Cladding: 50/125 Micron
- Wavelengths: 850 nm
Superior Materials
- Duplex zipcord with 2.0mm legs (2.0 x 4.0mm)
- Aramid yarn strength member
- Ceramic ferrule for precise alignment
Plenum Jacket Fire Safety-Rated
- Safe in plenum air spaces
- Meets UL 910 requirements
- Substitutes for OFNR riser
|
|
|
|
|
|
|---|---|---|---|---|---|
| Cable Matters 120007 | Cable Matters 120005 | Cable Matters 120009 | Cable Matters 120019 | Cable Matters 120015 | |
| Form Factor | LC / LC | LC / LC | LC / LC | LC / LC | LC / LC |
| Fiber Type | OM3 | OM1 | OM4 | OM5 | OS2 |
| Bandwidth | 40G | 10G | 100G | 100G | 10G |
| Jacket Rating | OFNP (Plenum) | OFNP (Plenum) | OFNP (Plenum) | OFNP (Plenum) | OFNP (Plenum) |
