Noctua NH-L9a-AM4 chromax.Black, Low-Profile CPU Cooler for AMD AM4 (Black)

(417 Reviews)

Price
$32.97

Quantity
(10000 available )

Total Price
Share
104 Ratings
84
11
3
5
1
Reviews
  • Rikk Caro

    > 24 hour

    Love the fan, super high quality. The mounting kinda was ridiculous though but Im not sure how to make that better. You have to hold the mounting bracket backplate, fan, and the screw in place all at once. I guess you could temporarily tape the backplate and then remove it after install. But yeah its dead quiet, looks great, and truly is low profile.

  • Continus

    > 24 hour

    On normal day to day use and Gaming, this thing will handle a 5900x just fine. On windows 10 I have power save mode on. This means that all my clock speeds are at 2.1ghz all the time (unless CPU gets a huge work load, then clock speeds will adjust to something higher) even when playing on games.

  • Matthew Almazan

    > 24 hour

    This thing sits lower than my ram it’s amazing! Thermals are great and it allowed me to get that clearance I needed to vertically mount my gpu in my ITX case! Super quiet as well easy to install! Worth every penny! (UPDATE 1 MONTH LATER) suddenly got frame rate drops and couldnt understand why so I ran a test and found out my cpu fan wasnt spinning. Low noise adapter that the cooler came with went out but I just used an extender my case manufacturer provided so were all set. Honestly sounds the same in volume still a 5 star for me.

  • Nickle

    > 24 hour

    I bought this to replace a tower-style cooler that didnt fit well with my updated RAM. Installation is straight forward and simple if your board is not installed in the case. On-case installation (like mine) is a little trickier as you need to use the backplate provided and do the adjustments vertically. In terms of performance, I have no complaints, it performs as good as my old cooler in a significantly smaller package, which is definitely a highlight. Probably the major drawback is the price, but in my opinion is worth it

  • Devron A.

    > 24 hour

    After delivery I had find out that I ordered wrong but the name of this item for AMD and INTEL processor are very similar. All information, text, pictures, prices are equally the same. While order I lost focus and had paid for AMD while I wished to order for INTEL. I would advise seller to make more differences in product pages so that buyers would see better. I am not expert in parts to notice that. Unfortunately I will have to return this product and have to buy offline.

  • Mathew

    > 24 hour

    Definatly one of the coolest pun intended, Cooling units ive ever installed. They really do mean 100% compatible. Perfect clearance for my ram AND my m.2 slot. And its height is amazing. Feels solid and durable and the thermal paste it comes with you only need to unscrew to tube cap to administer. i can see why noctua is such an impressive brand. Will update later when i see the coolers performance.

  • SMILE_MILES

    > 24 hour

    These are absolutely fantastic!!!! (Pun totally intended)

  • methos

    > 24 hour

    Great product, it knocked my CPU temperature down 20 degrees C vs. my stock ryzen wraith. I only took a star off because it is very difficult to install without removing your motherboard. For a new build it would be easy but if you are upgrading it will be a challenge. Also there are no extra screws so if one rolls off somewhere you might be in for trouble.

  • Christian

    > 24 hour

    I was setting up an ITX system as a secondary in one of my phanteks computer cases, and needed a cooler that could fit in a tight space and still provide adequate cooling for the ITX processor. Most 120mm AIOs didnt have the tube length I needed, tower coolers were too tall, and a lot of low profile coolers conflicted with the RAM slots.

  • A

    > 24 hour

    This cooler was so easy to install into the tiny ASRock Deskmini. It is amazingly quiet, even under load. Far quieter than the stock cooler it comes with.

l9al9a

The NH-L9a-AM4 chromax.black is an all-black version of Noctua’s award-winning NH-L9a-AM4 low-profile quiet CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM4’s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 low-profile mounting system for AMD AM4 and Noctua’s enthusiast-grade NT-H1 thermal compound, the NH-L9a-AM4 chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

l9il9i

ramram

pciepcie

AM4AM4

37mm low profile

Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.

100% RAM compatibility

The NH-L9a-AM4 has a compact footprint that fully complies with the socket keep-out zones specified by AMD. This means that neither the heatsink nor the fan overhang the RAM, so the cooler provides easy access to the slots and is fully compatible with tall memory modules.

100% compatibility with PCIe cards on mini-ITX

Some AMD-based mini-ITX motherboards have the PCIe slot located close to the CPU socket zone. While larger coolers that exceed this zone may block the PCIe slot, the compact-sized NH-L9a-AM4 provides full compatibility with PCIe cards.

Custom-designed SecuFirm2 mounting for AM4

The NH-L9a-AM4 comes with a custom-designed SecuFirm2 mounting system for the AM4 socket of AMD’s Ryzen platform. Allowing the heatsink to be fixed from the back of the motherboard, it makes installation easier than ever, all while maintaining the trusted SecuFirm2 quality.

l9al9a
Measurements
  • Height (without fan): 23 mm
  • Width (without fan): 114 mm
  • Depth (without fan): 92 mm
  • Height (with fan): 37 mm
  • Width (with fan): 114 mm
  • Depth (with fan): 92 mm
  • Weight (without fan): 390 g
  • Weight (with fan): 465 g
Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Cooler Specifications

Please Note:

The NH-L9a-AM4 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.

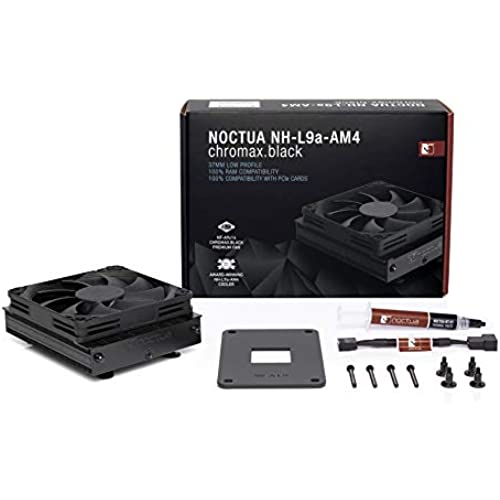

Scope of delivery

  • NF-A9x14 HS-PWM chromax.black premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A)
  • NT-H1 high-grade thermal compound
  • Black SecuFirm2 AM4 mounting kit
  • Black screws for 92x92x25mm fans
  • Metal Case-Badge
l9il9i

chromax.black design

The NH-L9a-AM4 chromax.black is black from head to toe: Featuring a black coated heatsink, a black fan with black anti-vibration-pads, black fan screws and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.

NH-L9i table NH-L9i table NH-L9a-AM4 Table NH-L9i-17xx chromax.black NH-L9i-17xx chromax.black NH-L9a-AM4 chromax.black table
NH-L9i NH-L9a-AM4 NH-L9a-AM5 NH-L9i chromax.black NH-L9a-AM4 chromax.black NH-L9a-AM5 chromax.black
LGA2066, LGA2011-0 & LGA2011-3 X X X X X X
LGA1700 X X X X X X
LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) X X X X
LGA775 & LGA1366 X X X X X X
Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 X X X X X X
Xeon LGA3647 X X X X X X
Xeon LGA4189 X X X X X X
AM4 with NM-AM4-L9aL9i with NM-AM4-L9aL9i with NM-AM4-L9aL9i with NM-AM4-L9aL9i
AM5 with NM-AM5-L9aL9i with NM-AM5-L9aL9i with NM-AM5-L9aL9i with NM-AM5-L9aL9i
sTRx4, sWRX8, TR4, SP3 X X X X X X
