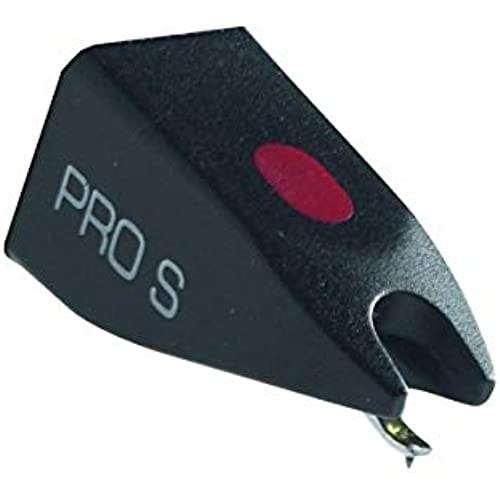

Ortofon Stylus Pro S

(109 Reviews)

Price
$24.59

Quantity
(10000 available )

Total Price
Share
87 Ratings
71
6
4
0
6
Reviews
  • GeoffreyWolter

    > 24 hour

    Ordered the Pro S but got the DJ S instead. I actually have 2 old DJ S rigs sitting in a closet so I just brought one out of retirement to keep with the blue color scheme. I dont mind that I didnt get what I ordered because I was still able to use what I got, but it does make me worry about ordering again in the future.

  • Jeremy bolden

    > 24 hour

    Perfect replacement on pro-ject primary

  • eric

    > 24 hour

    sound quality was sub par the shure white label is a much better needle

  • Scott McNeill

    > 24 hour

    Excellent stylus.... Thank you!

  • Kukupapa

    > 24 hour

    nice

  • Laura

    > 24 hour

    Price

  • Simian 18

    > 24 hour

    great delivery great needles.they last for yrs and I scratch like crazy.dont buy the pricier ortofon replacements. these r good enough

  • ISRAEL ARIAS

    > 24 hour

    Works Great!

  • Emunster

    > 24 hour

    Been buying this at guitar center before I found them cheaper here! Great money saver and shipment thanks! Highly recommended to all who buy this at any other place!

  • Dennis R Rapp

    > 24 hour

    Exactly what I needed and shipped quickly as well. Back to playing vinyl and couldn’t be happier.

Ortofon DJ LogoOrtofon DJ Logo
 MK1 Styli MK1 Styli

Ortofon Concorde MK1 Styli

Physically, each series of DJ styli for Concorde MkI except for S-120, and Concorde MkII will fit on alternate cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using CLUB stylus with SCRATCH body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.

Stylus RemovalStylus Removal

Stylus cleaningStylus cleaning

Spherical vs EllipticalSpherical vs Elliptical

How to replace a stylus

Firstly lock the turntable tone arm, unscrew the cartridge, gently remove the stylus from the cartridge and insert a new stylus. A stylus is changed usually by pulling straight out and in the opposite direction of the turntable"s arm. If the stylus doesn"t come with directions, try these: with one hand, hold the cartridge to steady it. With the other hand, using a pair of tweezers, grasp the stylus from both sides and pull. Install the new stylus: holding the stylus from the top, press it gently into the space at the tip of the cartridge where the old stylus had been. Don"t force it.

Proper care comprises the following:

Cleaning of record by means of carbon fibre brush before and after every use. Cleaning of record by using record cleaning machine once in a while.

Cleaning of stylus by means of a fine antistatic brush. Please remember to remove dust from the diamond tip before and after playback of each record. Use the brush in the forward direction from the rear of the cartridge towards the stylus tip and never from stylus tip to the rear of the cartridge and never from side to side.

Proper adjustment of antiskating, azimuth and tracking force.

Spherical vs Ellpitical

The physical difference between a spherical and elliptical stylus is the shape of the diamond.

An elliptical diamond allows for more detailed sound quality, as it fits better within the groove and therefore has more contact area with the groove itself. Elliptical diamonds penetrate the groove walls further, extracting more intricate detail, especially in the high end, than is possible with a spherical diamond. It is commonly misrepresented that elliptical styli cause more wear than spherical styli.

In fact, spherical styli, since they have a smaller contact area and more pressure, cause more immediate wear than elliptical styli, but in a smaller area of the groove itself. Elliptical styli, since they have more weight distribution amongst a larger contact area, will wear the groove slower, but will wear more of the groove over repeated backcueing.
