VSDISPLAY HD-MI DVI VGA Audio LCD Controller Board for 17 17 inch M170ETN01 1 WYD170SKD 01 LVDS 30 PIN LCD Display, for Mod Machine ( m170etn011 m170etn01.1 M170QGBN30-01B CD170A54-01 )

(667 Reviews)

Price
$20.99

Color
Quantity
(30000 available )

Total Price
Share
172 Ratings
146
2
2
6
16
Reviews
  • Katelynn Ryan

    > 24 hour

    Works well with my asteroids arcade1up no problems at all

  • CabsModder

    > 24 hour

    Works as expected on the Arcade1up cabs. Even plugged the included speaker into the auto pins and worked great with no need for an amp.

  • CabsModder

    > 24 hour

    Works as expected on the Arcade1up cabs. Even plugged the included speaker into the auto pins and worked great with no need for an amp.

  • Frank

    > 24 hour

    Works great!!! Converted my 1up machine to a RetroPie system. Took no time at all to install this board. Very good quality and performance.

  • Alan Murillo

    > 24 hour

    I mean it works but its defective as lines appeared on the screen. I switched it out for another display controller and it works fine no lines or issues so I know it the LCD controller that is off.

  • M. Lee

    > 24 hour

    Worked perfectly with Arcade1up Final Fight cabinet. I had an issue with the first order but the seller quickly responded and fixed the issue for me. I would recommend it to anyone who wants to mod the Arcade1Up cabinet!!

  • Jacob F. Kirk

    > 24 hour

    Works great on Gen 3 popular branded cabs

  • Mrs. Laney Dooley DDS

    > 24 hour

    Fried my screen and left me with a dim pixelated mess that will need to be replaced. Worked right for about 10 minutes before a strong burning/plasticy smell hit and left me with an LCD that no longer works right with this board or the original units board. Be careful.

  • BanDiT

    > 24 hour

    Works as advertised. Upgraded my arcade1up cabinet to a raspberry pi, and used this for the screen conversion.

  • James p

    > 24 hour

    Also there was no instructions, although its fairly straightforward there is a couple of buttons on the device that would have been really good to know, and also there is a way to change the volume that is mandatory or else your stuff is going to be too quiet. My biggest complaint is that I found this same circuit board on ebay, or Allie express, for $8 after shipping. Sure here youll get the Amazon guarantee but is it really worth another $20 for that guarantee? Probably not. If youre not on a budget this thing is definitely fine and it does what it advertises quite well. If there is latency, its hardly perceptible and I game at 4K 165 hertz.

LCD Controller Board:

HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI DVI VGA

Audio Input: HD-MI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

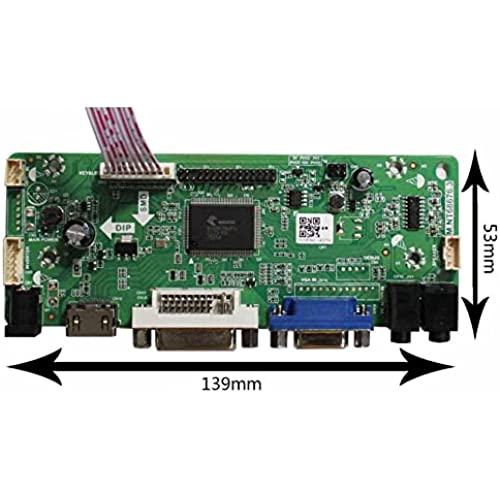

Board Size: 139mm x 53mm x 17mm


The Controller Board Fit To DIY Kit

17” 1280x1024 M170ETN01.1 WYD170SKD-01 M170QGBN30-01B CD170A54-01 A-E00171102-G


Packing list :

1× HD-MI VGA DVI LCD Controller Board M.NT68676.3 (new version)

1× Screw And Nut For GND Connection

1× Keyboard With Cable


Note:The controller board does not support flipping the image.


SATISFACTION GUARANTEE:

We care for every customer’s feeling.If this product does not meet or exceed your expectations,please

contact us for refund or replacement.
