4 Door Access Control System with Metal 5A 110V-240V Power Supply Box and Four door TCP/IP Network Access Control Panel Wiegand Controller,remote open
What the system can do:
- Basic funtion: swipe card/key fob open door, can check/download/export the detail history entrance record.
- Easily add/delete/activate/disable the user open privilege by professional management software.
- Support phone app to open door locally or remotely.
- Can be used for high security area, the control board as master unit is put inside room.
- Allow access for certain door at certain time for different users.
- Can keep door auto open during business hour and then auto close at set time.Support holiday security control.
- Can swipe certain times to keep open and swipe certain times to close door.
- Can be used for user attendance check also.
- A lot other features such as anti-pass back, 1st card open, multi-card open .etc.
- ......

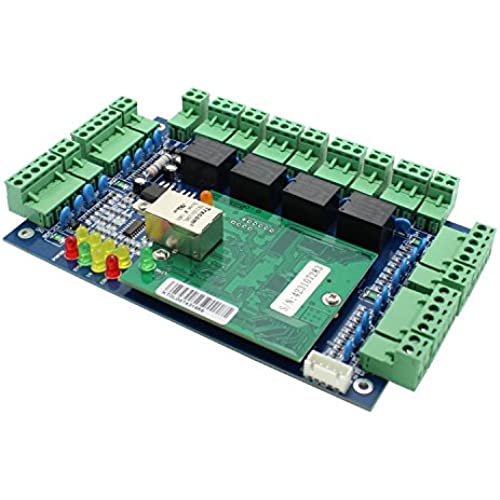

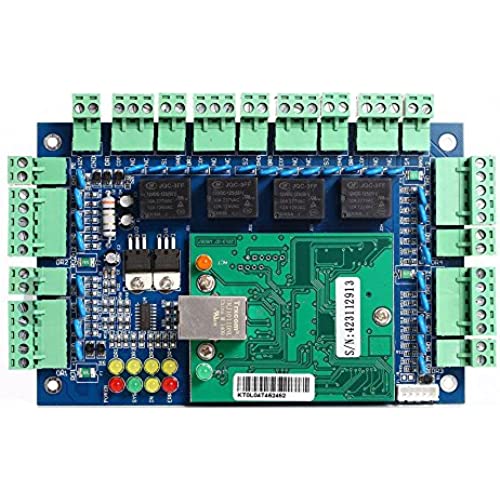

4 Door access control panel :
- Control 4 doors,get in by swiping card and get out door by exit button.
- Door controlled : 4
- Support 4 readers.
- Control of user capacity up to 20,000 user / up to 100,000 history records.
- Network communication via TCP/IP.
- Access control management software includes all-in-one-card management system, such as normal shift and multi-shifts time attendance management system,meeting attendance management system,ect.
- Application software support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system, not support MAC.
- Support web interface(no advanced control, can add/delete user and check records .etc basic function).
- Support phone app to open door even you are not there.
- Software supportable database: access & SQL
- Power supply input: DC 12V
- Input format of reader: Wiegand 26 bit (all card reader with compatible protocol, such as Motorola, HID, EM, M1, etc)
- Max distance from reader to controller: 100m/328ft (suggestion distance 80m/262ft)
- Alarm for long time door open, unlawful entry, intimidate
- Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware.If connected with strengthened expansion board, then is able to security alarm.
- Compulsive open and close door at long time: Yes
- Open door in remote distance: Yes
- Inter block: Yes
- Anti pass back and tail: Yes
- Multi card open door: Yes
- Open long time at specified time: Yes
- Urgency locking: Yes
- First card unlocking: Yes

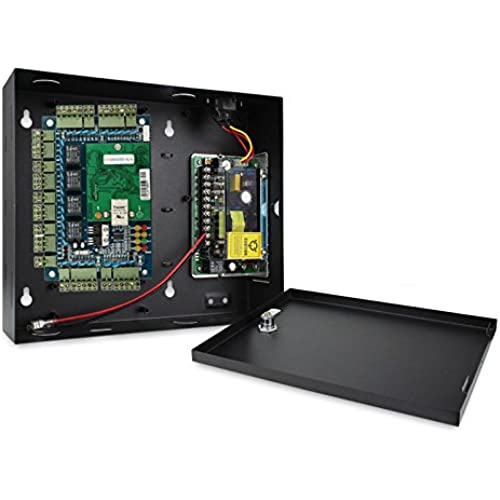

Metal power supply box :
- Power：60W
- Rated Current：5A,to power the whole system
- Input Voltage：110V-240V
- Output Voltage：12VDC（11－14V can be fine-tuned）
- Color of the box：black
- Size of the box：279mm * 234mm * 67mm
- Weight: 2.5kg
- Unlock Adjustable Delay: 0-15s
- Also act as the cabinet for the control board.
- With power cable to insert to electric outlet box.
- External Remote Templates :Yes
- Charging Overload :Yes
