Cable Matters Rackmount or Wall Mount 2U 48 Port Keystone Patch Panel with Cable Management and Support Bar (19-inch Blank Patch Panel for Keystone Jacks/Keystone Panel)

(847 Reviews)

Price
$21.59

Length
Quantity
(20000 available )

Total Price
Share
204 Ratings
157
29
5
2
11
Reviews
  • Ryan P Murphy

    > 24 hour

    made home automation closet neat an tidy.

  • Aikavols

    > 24 hour

    Theres some really good things, and really bad things about this. First, while some posts demand that you MUST use Cable Matters keystones -- you dont. This will (somewhat) work with any standard sized keystone jacks. Since I buy keystones in bulk from another company, I went ahead and tried this rack. Heres the good ........ its AMAZING to get 24 ports in 1U .. Generally, youll need 2U for this many ports. If youre using couplers, or small pass-through keystones (think audio, HDMI, etc.), then this would be fantastic. Heres the bad ........ if youre using non-Cable Matters crimped wired keystone CAT5(E)/6(A)/7 jacks -- youll never, ever, ever get 24 of them in this thing. Thankfully the project Im currently working on utilizes mostly couplers, though I had to readapt my layout for some wired keystones - otherwise this could have been a nightmare. Would I recommend it? Sure -- as long as youre not wiring up a 24 port network with crimp down keystones.

  • RP Computing

    > 24 hour

    Good Product at a good prince

  • Warner Discovers

    > 24 hour

    I didnt need anything crazy as far as a patch panel goes. I havent wired up a stripped ethernet manually probably in over 10+ years, just wanted to use keystones. This was perfect. I didnt have many runs in the house so I just needed a few keystones for Cat 6 coupling and this was exactly what I needed. Bought some of these: https://www.amazon.com/gp/product/B06ZXYP9C5/ref=ppx_yo_dt_b_asin_title_o03_s03?ie=UTF8&psc=1 Fit just right side by side to one another for cat 6 cables. Main suggestion I would have is when inserting the keystone, to place the bottom portion down into the hole first, then push the top in until it clicks. Had great success with this method. I noticed once theyre in though, who knows if theyll come out peacefully, seemed a bit difficult attempting to get one out. Convenient that they gave you some zip ties to tie down the ethernet so they dont snag if pulled on. Would highly recommend anyone looking for a simple customizable patch panel. Not only that but you could use literally any keystone for any other tech besides ethernet too, which is great.

  • Nicholas Davey

    > 24 hour

    Compared to several other patch panels, the ease of installing keystone jacks into this patch panel was awesome. I didnt even need tools. Sturdy construction and the cable support bar is excellent.

  • D

    > 24 hour

    Be aware that standard keystones do not fit together at this density. You need slim keystones. This is an excellent product, just dont expect to put 24 standard keystones in it.

  • JBDragon

    > 24 hour

    I really like these Patch Panels. They look nice and are easy to use and flexible. They also have a really nice cable support on the back side. If you look in the first picture at the red cables, you can see how each one is zip tied into place. Nice!!! You can see in the first and second picture Im using 23 Normal Cable Matters Keystones. Plus 1 Blank Plug in the 24th spot. The nice thing about this is you can install the cables onto all your cables FIRST and then pop them into place after. This makes the job so much easier. I got a different one where you would have had to mount all the wires onto the patch panel at once, really making a bulky mess and really hard to do in my small closet. So I ended up going this route instead. On the Second Patch Panel, you see in the 3rd picture, There are 2 Keystones on the right side. These are 2 of the 9 NEW Cat6 cables I ran and those 2 go to the garage for future Security cameras. Then theres a number of blanks in the middle and on the left side are passthrough Keystones. This allows me to run cables from the other devices on this rack, from the Router, the Tivo Stream, HD HomeRun, etc to plug in behind the Patch Panel, where the cable can be hidden, and then the short cable into the Router like all the others making for a better looking professional job. Instead of just running a cable out from whatever hole and into the Switch. That 3rd picture shows a nice clean setup with all the same cables out front. I have empty slots for future expansion. I dont think thats likely. But then I figured I wouldnt have to crawl around on my belly ever again 5 years ago when I first ran all the Cat6 wires. Here I am running another 9. 3 in one room, 4 in another room, and 2 into the garage. By the way, I threw in a 4th picture. This was How it was just before I changed it all. This was my 5 year old setup so you can see the Before and After. Really how much Ive learned over the years and what I could afford and had time to do back then. I did that job right after I got this house 5 years ago. But you can see all the different color cat6 wires, and theyre just all over the place. So Im a big fan of these Cable Matters Patch Panels. I did have a few Keystones that didnt install how they are supposed to go in. The bottom wasnt quite is and then it makes them hard to get out. I found that you can push up on the bottom and in on the Keystone and itll pop fully into place and all is good. I like that it makes the job easy when youre not trying to install all the wires onto a single board on the back of a Patch Panel like many others out there. You also get the flexibility of using any number of different Keystones to fit your own needs. You dont even have to use Black to match as I did. Maybe you use different colors. Like Red for one room, and Blue for another and so on and so on. You can use HDMI Keystones and Audio keystones and on and on. Thats whats so great with this design. The final results is it looks really nice. The options on what you can do is almost unlimited. But what takes it over the top, is the excellent cable support in the back of this Patch panel. Its solid!!! You dont want future issues with your cables. You want a setup thats going to last you for many years to come. Using my label printer, and double line printing, I was able to make small labels to label what every port went to. Theres a spot to label each port on this thing. I also have every port labeled around my house. So I know Port 3 in the Master Bedroom is this one exactly. I also tested each and every wire to make sure they were all perfect as I did booboo a few times. I used a Fluke Networks MS2-100 Cable Tester. So, what do you think? You cant go wrong with this Cable Matters 24-Port Cat6 Keystone Patch Panel. Im a big fan and would recommend it to anyone that is going to take on a job like this. All this stuff is really not that hard. The hardest part? sliding around on my belly all around under my house in the dirt, and the spiders and so forth to run the cables. Cut the needed holes in the walls, and down under the house to run up the wires, fill holes up when done with expanding foam. Did it ALL by myself. There was no one else here. All this other stuff, other than time, not that hard. My Dad is completely clueless about it. But its something you can learn to do. Its pretty straightforward. A little planning on what YOU want and the pieces fall into place. 11-17-2019 update I added another picture close up to see how I labeled my ports. As you can see there is not a lot of room. I used a normal brothers labeler. Then I used 2 line printing which makes the text a lot smaller. I would make sure to add a few spaces in between each work for more space to carefully cut out. You can only fit 3 to 4 letters or numbers or a combo. So MB1 would be Master Bedroom 1. DR1 would be Dad’s Room 1 since he lives at my house. RMC would be Remote Management Control which is for my UPS, etc. at the Keystones in the wall at all my locations, they have the same markings. So it makes it easy to figure things out if there is ever a issue. I am using Cable Matters Keystones with these, the normal ones, along with their pass though keystones, which allows me to plug things like my router or NAS cables that are sitting on those shelf’s to plug in on the back side of the keystone, then just add a short patch cables line everything else for a clean look. I’m also using some blanks from Cable Matters to fill in some holes I didn’t need to use for keystones at this time to clean my rack up better. Keystones like this is the way to go.

  • Bruce S.

    > 24 hour

    TL;DR Purchased several of these for my homelab. These patch panels are exactly as advertised. They are easy to use. The keystones make them highly adaptable and convenient to use. They are also very sturdy (no bending or sagging). BACKGROUND: Im a network engineer (actual one who develops solutions for customers, not just an admin with a title). Been an engineer for 15 years, and was an admin for 5 before that. Im a network guy. What do network guys deal with? Cables, connectors, patch panels, and network devices.

  • Geoff

    > 24 hour

    Ive used several punch-down style patch panels over the years. While this is more expensive (including the keystone jacks), it is well worth the extra expense. Being able to move keystones around (easily done with this panel) as well as the built-in strain relief make this panel worth it. I have no problem recommending this.

  • L. Hickman

    > 24 hour

    I purchased this because I had a closet with 10 Cat5E and 10 RG-6 termination. This Patch panel was easily mounted vertically inside the OnQ box that was already in the closet and allowed me the flexibility to have a single patch panel and fill half of it with Cat5E keystone Jacks and half with RG-6/F-Connector Keystone. It was quite sturdy (easily mounted) and standard sized keystone openings. I us Med 3 different brands of keystone jacks and they all fit securely in the opening. My favorite part is the cable support/organizer that is on the back. it makes organizing the cables coming into the patch panel very easy with just a few zip ties.

bannerbanner

Keystone Jack Convenience

The Cable Matters 2U 48-Port Keystone Blank Patch Panel leverages the convenience of keystone jacks for terminating multimedia cables in a single location. Snap in your keystone of choice for RJ45, RG6 coax, fiber, HDMI, stereo, and more. A heavy-duty strain relief bar with labeled keyholes for cable ties organizes and supports 48 cables.

Important Notes

  • Wall mounting requires a bracket with clearance for the cable strain-relief bar.
  • Fits standard keystone jack size. Proprietary keystone jacks must be used with the products from the same vendor.

Package Contents

  • 1 x 48-Port Blank Keystone Patch Panel

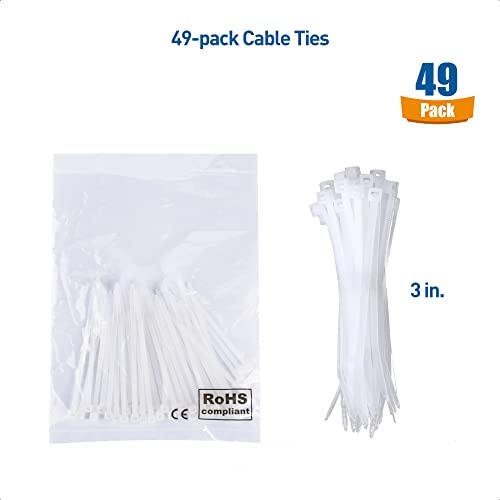

  • 49 x 3" Cable Ties
  • 1 x Instruction Sheet
11

Heavy Duty Construction

1) Label spaces for printed or hand-written labels

2) Corrosion-resistant 1.5mm SPCC steel

22

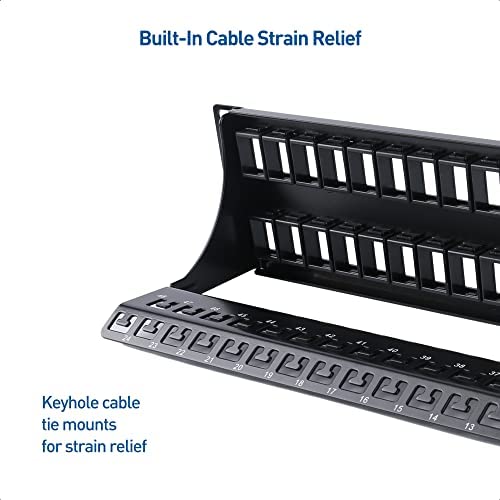

Built-In Cable Strain Relief

3) Keyhole cable tie mounts for strain relief

4) Designed to install in a standard 19-inch rack

Note: Mounting hardware is NOT included

2U 48 Port Keystone Patch Panel2U 48 Port Keystone Patch Panel

Snap-In Keystone Jack Insert Compatible

  • RJ45 network coupler
  • RJ45 jack
  • LC MM Fiber coupler
  • RG6 coax cable coupler
2U 48 Port Keystone Patch Panel2U 48 Port Keystone Patch Panel

Cable Strain Relief Bar

  • Heavy duty bar supports cable weight
  • 48 keyholes for cable ties
  • Numbered ports for organization
  • Includes 49 3-inch cable ties
2U 48 Port Keystone Patch Panel2U 48 Port Keystone Patch Panel

2U Rack-Mount

  • Dimensions: (H x W) 3.5” (2U) x 19”
  • Cable Bar depth: 3.3 inches
  • Allow clearance for cable bar depth
  • Weight: 2 lb
180115 RJ45 Port Dust Covers 1U Wall-Mount Panel Bracket 2U Server Rack Shelf 180028 180058
2U 48-Port Keystone Blank Patch Panel RJ45 Port Dust Covers 1U Wall-Mount Panel Bracket 2U Server Rack Shelf Shielded Patch Panel Vertical Patch Panel
UL Listed
19" Rack or Wall Mount
Number of Ports 48-Port n/a n/a 24-Port 12-Port
Mount Height 2U 1U 2U 1U n/a
Part Number 180115 180113 180037 180118 180028 180058
