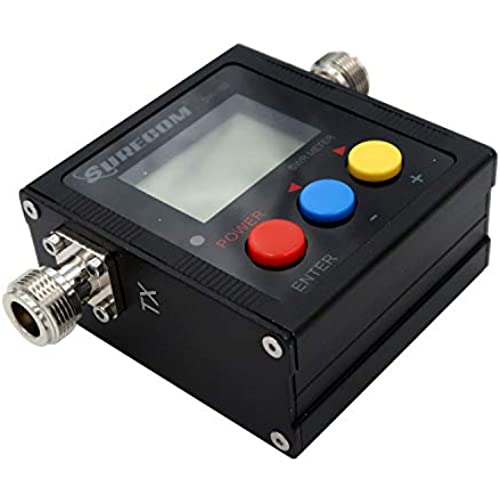

Mcbazel Surecom SW-102 Digital VHF/UHF 125-525Mhz Antenna Power & SWR Meter

(1853 Reviews)

Price
$34.79

Quantity
(10000 available )

Total Price
Share
199 Ratings
150
12
5
13
19
Reviews
  • Dudley Dufort

    > 24 hour

    This is what you need to fine tune your radio antenna for maximum transmitting output,

  • Rodger Gee

    > 24 hour

    I ordered this meter because of the great reviews, good price and advertised wide frequency coverage. But clearly the advertised frequency coverage is very misleading. It does not even come close to being accurate on the 220Mhz ham radio band, the wattage and swr readings are way off. It claims coverage of 125 - 525Mhz, thats simply not true! The only reading that was accurate on the 220Mhz FM band was the transmit frequency read out, thats all. I will say that it was spot on in the 144 - 148Mhz and 440 - 450Mhz FM ham radio bands. It worked great on those bands but this meter does not serve my needs because I needed a meter that has coverage on the 220Mhz band, this one wont do it! I would have given it 5 stars but only gave it 2 stars because of the bogus, misleading frequency coverage. I will likely be returning it for a refund.

  • Dcon

    > 24 hour

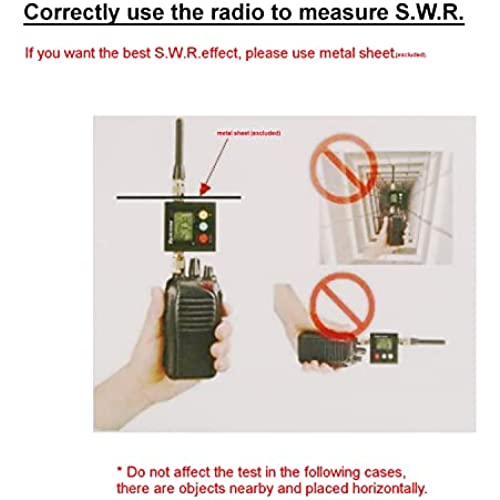

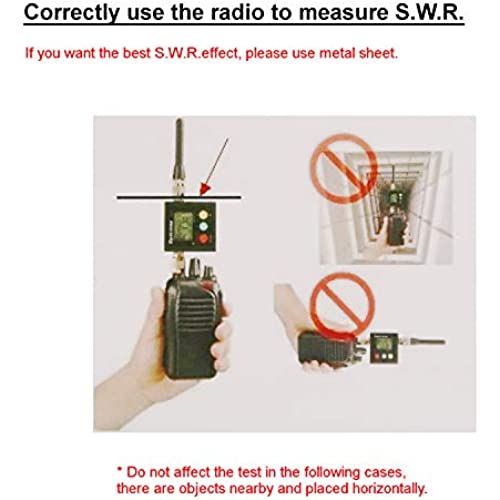

    Easy to hook up and use. Came with a plate to provide a ground plane for handhelds and a battery charge cord. Make sure the adapters you need are right before ordering!

  • Ken s

    > 24 hour

    Product performs as expected.

  • csdgpr

    > 24 hour

    Excellent measuring power and SWR. The frequency counter works excellent. I recommend this product.

  • Kyle H.

    > 24 hour

    Works good for GMRS frequencies. Had a brand new 450-470MHz antenna that was registering at 9 vswr, trimmed it down just right with the help of this tool to around 1.06 vswr. Glad it came with UHF SO-259 adapters.

  • M. Picchi

    > 24 hour

    Poor quality connections; pins inside the female connection broke off making the meter unusable. I will attempt reaching out to the MFG for warrenty claim. (Not holding my breath) F/up: crickets from mfg. Glad I did not hold my breath.

  • wayne

    > 24 hour

    Antenna tuning, excellent easy to use easy to understand

  • Dirkster101

    > 24 hour

    Swr reads way too high. A stock antenna for a GMRS certified radio measuring swr in the 7s?. I dont think so.

  • Joseph M.

    > 24 hour

    I put this on my Hytera MD-782G, which is a 400 MHz radio, with high power, the meter reported 7 watts, and the frequency to be 221 mhz. Both readings were way off. I switched antennas, and got the same readings. Im going to try to return it. I just wish I didnt wait so long to try it out. The design looks nice, but it has to work better to be a good meter. Right now it is useless to me.

Warning: DOES NOT compatible with Digital Radio

Description
VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequency counter.
All Function display ( Frequency, Power, SWR, FW, RW, Battery voltage)

Functions
Frequency range: 100 - 520MHz
Measurable power range: 0 - 120W
Input Frequency counter
Maximum power: 120W Accuracy: mean + / - 5%
Impedance: 50Ω
Battery : 3.7V Li-ion Rechargeable Battery
Interface: N-J Interface
Size: 66*68*37 (mm)
Weight: 220g

Specification
MAX. Power in: 120 W
V.S.W.R: 1.00~19.9
Frequency Ranger: COVER 100MHz~520MHz
Insertion Loss: <0.15dB(VHF) , <0.25dB(UHF)
Temperature: 0℃~60℃
Input Frequency counter: Yes
Battery Voltage Display: Yes
Battery Build-in: 600 mAh Li-ion Battery
Auto Power Off: 1-9 mins
Charger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 mins
Interface (in and out ): N(SL16)

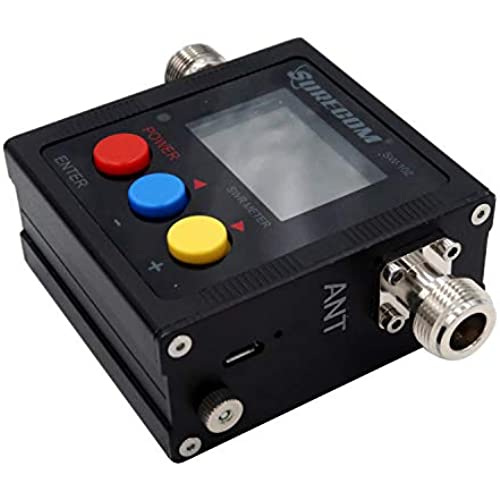

Connect the Output of your transceiver to "TX" and Antenna or Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.
1) Adj. RF Forward %
Press 2 second the [Red button] to power on or power off

Function Memory SAVE
1 Press MENU (Blue button)
2 Press F1 (Red button) (Select 1-6 Function)
3 Press Blue button ( - ), Yellow button (+)
4 Press the Red button for 2 seconds
5 Press the Blue button to SAVE and EXIT

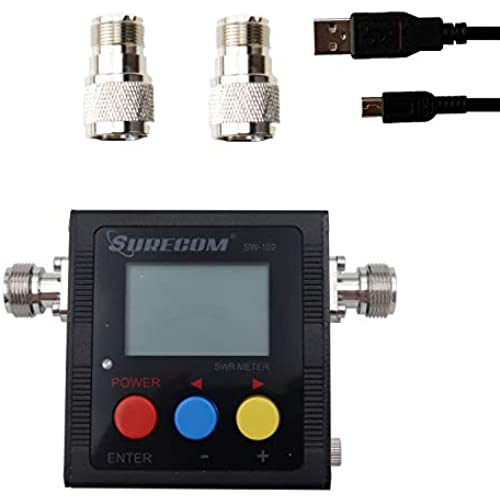

Package List
1x SURECOM SW-102 Meter
1x Charger Cable
1x Users Manual
