ECO-WORTHY Heavy Duty 330lbs Solar Tracker Linear Actuator Multi-function (12V, 12)

(0 Reviews)

Price
$39.99

Quantity
(10000 available )

Total Price
Share
94 Ratings
46
15
15
7
11
Reviews
  • Chris Hageman

    > 24 hour

    Do NOT use for automatic chicken coop door unless you have a sensor that stops it if a chicken is in the doorway.

  • Norman Brewer

    > 24 hour

    These are great

  • Gsatman

    > 24 hour

    Using as a bed lift for my JD Gator and it works great..

  • Mr. Anonymous

    > 24 hour

    After receiving the actuator and placing in my installation, I ran the actuator and with a load of approximately 200 pounds in line with the shaft, once the power was removed the actuator would back-drive (the load would fall). Installation was in a push type manner, which the unit was advertised for. As this was inconsistent with the products listing, I contacted the seller, whom initially had a prompt response which was appreciated, and that they are awaiting a response from the manufacturer. Well, after 11 days of waiting, I cant wait any longer to hear an excuse of why it doesnt work as advertised. Had to send it back and replace it with a different unit.

  • dale lee

    > 24 hour

    Power tilt on my outboard

  • Ron Bernstein

    > 24 hour

    Well made but both packages containing the hinge swivel pin were open and pins got lost somewhere between packaging and delivery got lost. I did find 1 pin loose in the packaging box but the rest were gone.

  • Nate

    > 24 hour

    Worth it. We have this on a timer that opens the chicken coop door in the morning and closes it at night. We can adjust the timer from our phones since it is attached to a smart plug / relay switch. Its been doing this for about a year now without any issues.

  • Mark Flavin

    > 24 hour

    I never had a chance to try this actuator. The first one I ordered was inoperative right out of the box. I checked the leads with and ohm meter and it was open circuit, applying power no movement, so I sent it back thinking it was a fluke. The second unit I received did the same, no continuity and did not work. After returning them both I ordered (from a different manufacturer) a more expensive and hopefully functional actuator from Amazon.

  • RT

    > 24 hour

    My Solar system wasnt tracking. This solved my problem.

  • Matt F

    > 24 hour

    The actuator worked just like it should but it quit working before a year was up. I took it apart and found that the motor was completely full of water. I was under the impression that it could be used outside exposed to the elements as long as it was not submerged in water, apparently it can’t be used in the elements or I just got a poorly sealed actuator.

Linear Actuator Linear Actuator
11

Product Details

346564555346564555

4564655445646554

6436453453265463442523464364534532654634425234

Sturdy Screw Housing

Screw gasket design, add a flat washer, effectively prevent the screw off. Automatically assure the quality, safe & convenient.

Lubricated Metal Gear

Inside the fuselage using powder metallurgy technology, pure metal gear, life is more durable.

All Metal Material

Motor design inside and outside of pure metal, greatly improve the service life of the product, when working with a little metal friction voice, it is a normal phenomenon.

Creative Tips for your life

Linear Actuator Linear Actuator

Linear Actuator Linear Actuator

Linear Actuator Linear Actuator

Linear Actuator Linear Actuator

Furniture and Home

In daily life uses, linear actuators can serve to adjust massage chair, TV lift, table lift, electric sofa, electric treadmill, car electric tailgate etc.

Hospitals and Healthcare

Linear actuators are used for moving and adjusting applications: patient shifter, electric wheelchair, electric nursing bed, esthetic dental chair etc.

Industrial and Construction

Actuators are widely used in industrial machinery such as engineering vehicle, electric lifting platform, CNC machine tool, Manipulator etc.

Agricultural Machinery

Linear actuators also apply to many automatic agricultural machineries: sprayers, lawn mowers, tractors, cultivators, harvesters etc.

QAQA

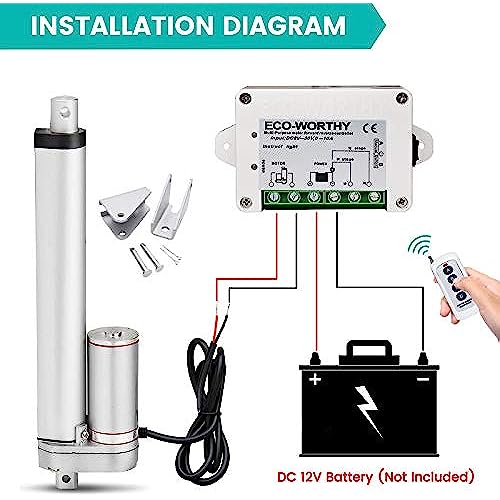

How to install the actuator?

1.Prepare to connect the two wires of the actuator to a 12 volt battery

2.Red wire to the positive terminal and Black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.

3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch.

4.Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.

5.The actuator has pre-installed inner limit switch, it cannot be adjustable.

How to protect your actuator?

  • Please use the 12V DC power adapter.
  • The actual load does not exceed the rated load.
  • All the actuators have duty cycle, they are unable to work all the time without stop.

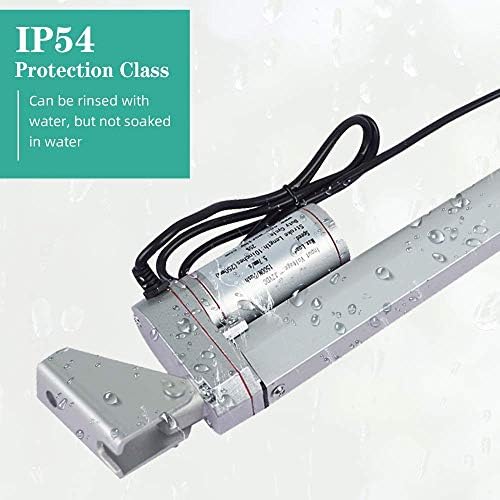

  • The actuator is not completely waterproof, please do not directly immerse in water.
Linear Actuator controller controller
6-inch Linear Actuator 5A Black Controller 10A White Controller
Power Input DC 12V DC 12V DC 12V
Power Output - DC 12V DC 12V
Retracted Length 260mm - -
Extended Length 410mm - -
Installation Method Screw-in/Wiring Wiring Wiring
